Resurrecting the homelab
It’s been a while since I used my homelab. I remember that I shut down the VM’s, the ESXi host and the PowerEdge server close to a year ago. I just powered it back on. Before I did that, I already knew that I would surely encounter problems such as expired licenses & certificates, and forgotten passwords. Switched on the power strip, and the PowerEdge started humming. Its LED lights blinking, and the same goes for the little switch.
Logged in to the iDRAC page (https://idrac.deephackmode.io). I got in using ‘root’ as username and the password that I remembered. Phew!
At the iDRAC Dashboard, clicked “Power On System” button, and then the fans started running in full speed! Opened the virtual console and waited for the ESXi host to be ready.
Logged in to the ESXi host (https://esx-1.deephackmode.io). Same username and password as the iDRAC’s worked!
I see the alert banner that the license has expired! Requested and got temporary licenses from an internal process at Broadcom (as I’m an employee).
Assigned the new license in the ESXi host. Exited Maintenance Mode. Powered on vCenter, Router VM and the Ops Manager.
Tried to log in to the VMware vCenter Server Management (https://vc-1.deephackmode.io:5480/) but the root’s password has expired! I’ll deal with that later.
Logged in to the vCenter UI with ‘administrator@vsphere.local’ user and same password as iDRAC’s. It worked!
All licenses in vCenter has expired. Added the new licenses and assigned them!
Powered on the NSX Manager and Edge VM’s. I know that the username is ‘admin’ but I was failing to get in with the usual passwords. Eventually, after some trial and error, I got in with a password I vaguely remembered. The password has expired though! I had to change it via ssh.
Got in to NSX Manager! The Hosts, Nodes, Tunnels and Zones are all up! Yay! Added the new license to NSX.
Back to the VMware vCenter Server Management. I was able to update root’s password in vCenter (Administration->Users and Groups->Users->root->Edit). Now, I can access it again.
Logged in to Ops Manager UI using the ‘admin’ user and usual password. I logged on to the Ops Manager via SSH using a private key saved in PuTTY!
I started the TKGI and Harbor deployments:
bosh -d pivotal-container-service-9db11bf32763a7a53575 start -n
bosh -d harbor-container-registry-bcee679c611753b689a4 start -n
Both failed, at the pre-start stage. Checked the failure on the TKGI deployment:
$ bosh task 3504
Using environment '10.1.1.11' as client 'ops_manager'
Task 3504
Task 3504 | 21:45:19 | Preparing deployment: Preparing deployment (00:00:01)
Task 3504 | 21:45:20 | Preparing deployment: Rendering templates (00:00:03)
Task 3504 | 21:45:23 | Preparing package compilation: Finding packages to compile (00:00:01)
Task 3504 | 21:45:24 | Updating instance pks-db: pks-db/03025397-6bc2-4b80-9bc0-6ca531b843ab (0) (canary)
Task 3504 | 21:45:41 | L installing packages: pks-db/03025397-6bc2-4b80-9bc0-6ca531b843ab (0) (canary)
Task 3504 | 21:45:43 | L configuring jobs: pks-db/03025397-6bc2-4b80-9bc0-6ca531b843ab (0) (canary)
Task 3504 | 21:45:43 | L executing pre-start: pks-db/03025397-6bc2-4b80-9bc0-6ca531b843ab (0) (canary) (00:10:20)
L Error: Action Failed get_task: Task 3134eab7-2687-4f43-7821-a71cb85eb743 result: 1 of 4 pre-start scripts failed. Failed Jobs: pxc-mysql. Successful Jobs: bosh-dns, syslog_forwarder, bpm.
Task 3504 | 21:55:44 | Error: Action Failed get_task: Task 3134eab7-2687-4f43-7821-a71cb85eb743 result: 1 of 4 pre-start scripts failed. Failed Jobs: pxc-mysql. Successful Jobs: bosh-dns, syslog_forwarder, bpm.
Task 3504 Started Sat May 23 21:45:19 UTC 2026
Task 3504 Finished Sat May 23 21:55:44 UTC 2026
Task 3504 Duration 00:10:25
Task 3504 error
Capturing task '3504' output:
Expected task '3504' to succeed but state is 'error'
Exit code 1
It was failing on pre-start script of pxc-mysql. The pxc-mysql pre-start logs show the following, which indicates that it was failing to connect to bosh-dns service within the VM.
2026-05-23T21:45:43.913146887Z ----- waiting for bosh_dns
[wait] 2026-05-23T21:45:44.044827380Z INFO - using nameserver 169.254.0.2:53
[wait] 2026-05-23T21:45:44.044906776Z INFO - resolving upcheck.bosh-dns.
[wait] 2026-05-23T21:45:44.049257464Z DEBUG - lookup upcheck.bosh-dns. on 192.168.86.34:53: read udp 169.254.0.2:57258->169.254.0.2:53: read: connection refused
Checked the bosh-dns logs and saw these, which indicates that the bosh-dns certs have expired!
[main] 2025-09-01T16:31:13.139756264Z INFO - bosh-dns stopped
[main] 2026-05-23T21:45:44.465678237Z INFO - bosh-dns starting
[main] 2026-05-23T21:45:44.470291402Z ERROR - Unable to configure health checker failed to load keypair: certificate has expired: validity ended at 2026-04-10 01:55:30 UTC but current time is 2026-05-23 21:45:44 UTC
So, it’s the classic error caused by the bosh-dns certificates being expired.

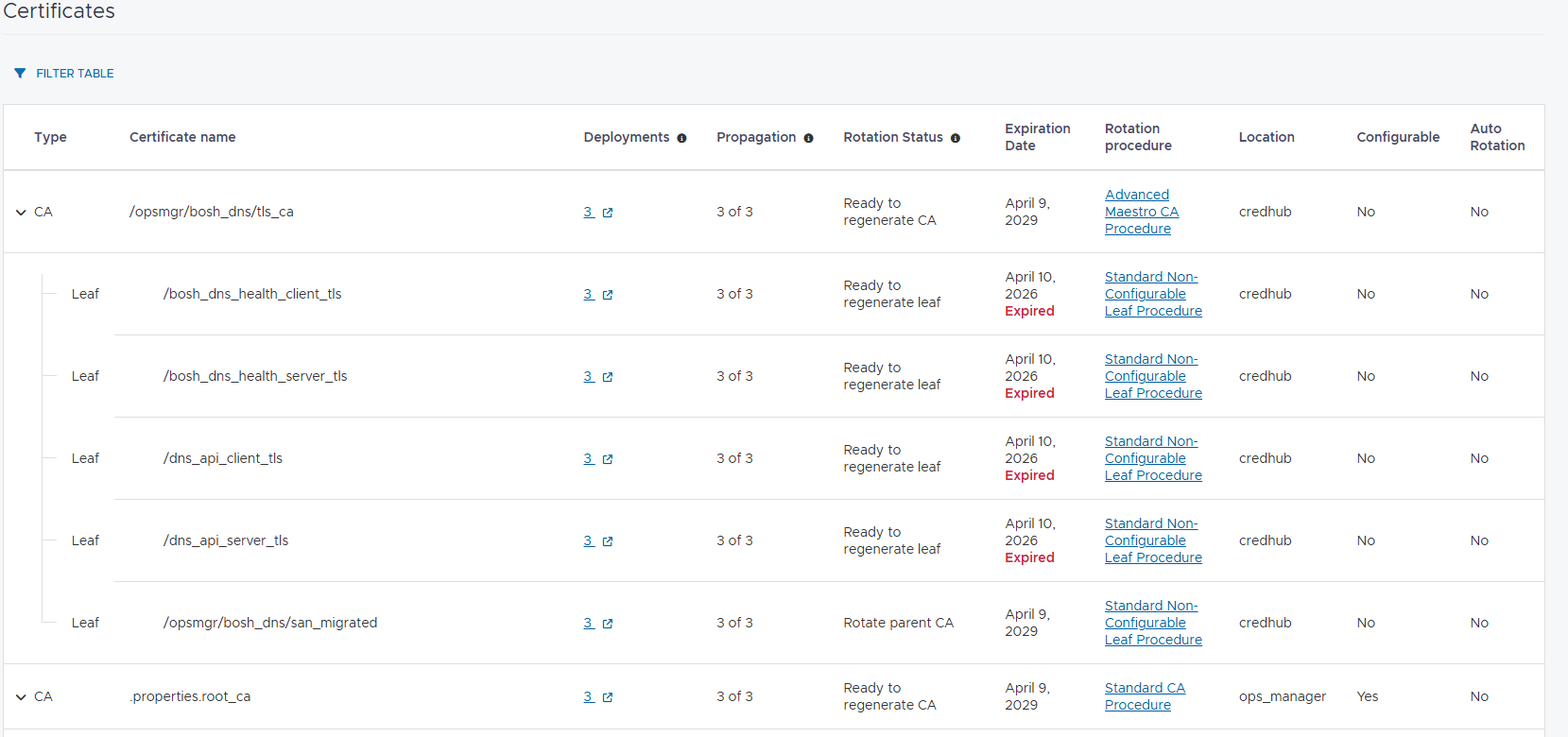

In the Ops Manager Certifcates Page, the expired bosh-dns certificates are shown too:
Followed the procedure to rotate the non-configurable leaf certificates.
Had to update the NSX password in the Bosh Tile→Director config settings too. Started the Apply Changes, but it failed in running the upgrade-all-service-instances errand.
Task 3579 | 13:33:59 | Error: Instance(s) 'pivotal-container-service/67599633-9084-46d4-b9dd-4895f5b6a613' is stopped, unable to run errand. Maybe start vm?
To resolve that, I had to ran bosh start on the pks deployment for the second time because the first one failed midway and left the pivotal-container-service instance in a stopped state still.
bosh -d pivotal-container-service-9db11bf32763a7a53575 start -n
Now that the pks deployment instances are up & running, I tried running the upgrade-all-services-instances errand manually, but it failed. I figured that it was because the instances (masters and workers) were still in a stopped state. So, I bosh-started the instances and they got up & running.
At that point, the Harbor deployment was still not updated with the bosh-dns certs because Apply Changes failed in pks deployment earlier. So, I started Apply Changes again, and it completed successfully, and Harbor is now also up & running!
ubuntu@opsmgr:~$ bosh vms
Using environment '10.1.1.11' as client 'ops_manager'
Task 3633
Task 3635
Task 3634
Task 3633 done
Task 3635 done
Task 3634 done
Deployment 'harbor-container-registry-bcee679c611753b689a4'
Instance Process State AZ IPs VM CID VM Type Active Stemcell
harbor-app/fbecc999-ce22-44f9-b2dd-4ca531a4ef73 running az1 10.1.1.14 vm-56a752f9-1d83-4071-89f3-5e4b1b38496c large.disk true bosh-vsphere-esxi-ubuntu-jammy-go_agent/1.785
1 vms
Deployment 'pivotal-container-service-9db11bf32763a7a53575'
Instance Process State AZ IPs VM CID VM Type Active Stemcell
pivotal-container-service/67599633-9084-46d4-b9dd-4895f5b6a613 running az1 10.1.1.13 vm-c931a2c6-0942-4637-a4ad-7bd68aa435f7 large.disk true bosh-vsphere-esxi-ubuntu-jammy-go_agent/1.785
pks-db/03025397-6bc2-4b80-9bc0-6ca531b843ab running az1 10.1.1.12 vm-7e7817d8-b864-4cca-9ef1-fba842f165fe large.disk true bosh-vsphere-esxi-ubuntu-jammy-go_agent/1.785
2 vms
Deployment 'service-instance_6907a1e2-979e-4c6a-bc71-ce688837c178'
Instance Process State AZ IPs VM CID VM Type Active Stemcell
master/6f7e6c27-b6b2-424a-845d-06c0654869d2 running az1 10.16.0.2 vm-cde52dd5-86ef-4c71-9592-0014858dcb72 medium.disk true bosh-vsphere-esxi-ubuntu-jammy-go_agent/1.785
worker/a0f0e4a5-114d-422b-9156-12357bf58502 running az1 10.16.0.3 vm-274299cc-2121-4d08-a470-a1b57b8606b8 medium.disk true bosh-vsphere-esxi-ubuntu-jammy-go_agent/1.785
2 vms
Succeeded
ubuntu@opsmgr:~$
Logged in to the TKGI control plane and checked the ‘orion’ cluster:
ubuntu@opsmgr:~$ . env.sh
API Endpoint: tkgi.deephackmode.io
User: admin
Login successful.
ubuntu@opsmgr:~$ tkgi clusters
PKS Version Name k8s Version Plan Name UUID Status Action
1.21.0-build.32 orion 1.30.7 small 6907a1e2-979e-4c6a-bc71-ce688837c178 succeeded UPGRADE
ubuntu@opsmgr:~$ tkgi get-credentials orion
Fetching credentials for cluster orion.
Context set for cluster orion.
You can now switch between clusters by using:
$kubectl config use-context <cluster-name>
ubuntu@opsmgr:~$ kubectl get po -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system coredns-85dd57f7df-wkwx7 1/1 Running 0 19m
kube-system metrics-server-7f95dbcbdf-hvrpp 1/1 Running 0 19m
kube-system snapshot-controller-59ffcb8bc5-hmtfc 1/1 Running 0 19m
kube-system snapshot-controller-59ffcb8bc5-s577j 1/1 Running 0 19m
kube-system snapshot-validation-deployment-56fc8658dc-5hvgl 1/1 Running 0 19m
kube-system snapshot-validation-deployment-56fc8658dc-8f2lw 1/1 Running 0 19m
kube-system snapshot-validation-deployment-56fc8658dc-9jj5k 1/1 Running 0 19m
nginx nginx-bf5d5cf98-lksgn 1/1 Running 0 19m
nginx nginx-bf5d5cf98-nqfpz 1/1 Running 0 19m
nginx nginx-bf5d5cf98-slnd2 1/1 Running 0 19m
openldap openldap-fcddc988b-wgwjx 1/1 Running 0 19m
pks-system event-controller-fb457457d-bjjjm 2/2 Running 0 19m
pks-system fluent-bit-5mrp6 2/2 Running 0 17m
pks-system metric-controller-595c84d4c7-dr4s5 1/1 Running 0 17m
pks-system observability-manager-6b8c77c5f-gpmx9 1/1 Running 0 19m
pks-system sink-controller-7f67fb549c-9gkwm 1/1 Running 0 17m
pks-system telegraf-gx2cm 1/1 Running 0 18m
pks-system validator-6bdd686b8-rvthx 1/1 Running 0 17m
tanzu-system kapp-controller-598d6646bc-db8mw 2/2 Running 0 89s
tanzu-system secretgen-controller-78498c464b-pfms2 1/1 Running 0 19m
vmware-system-csi vsphere-csi-webhook-678bd7579-6njfz 1/1 Running 0 19m
vmware-system-csi vsphere-csi-webhook-678bd7579-qr76t 1/1 Running 0 19m
vmware-system-csi vsphere-csi-webhook-678bd7579-xv7mr 1/1 Running 0 19m
vmware-system-tmc agent-updater-89d499579-njl5c 1/1 Running 0 18m
vmware-system-tmc agentupdater-workload-29660541-52lqx 0/1 Completed 0 21s
vmware-system-tmc cluster-auth-pinniped-8566f6747d-j4zph 1/1 Running 0 19m
vmware-system-tmc cluster-auth-pinniped-8566f6747d-lx9m6 1/1 Running 0 19m
vmware-system-tmc cluster-health-extension-6c6c7f8576-6xwkz 1/1 Running 0 19m
vmware-system-tmc cluster-secret-69fcf75984-ztzzh 1/1 Running 0 19m
vmware-system-tmc extension-manager-688df6b7c4-zcnlb 1/1 Running 0 18m
vmware-system-tmc extension-updater-86bf96458c-9vwwm 1/1 Running 0 18m
vmware-system-tmc gatekeeper-operator-manager-696cf5f5b7-hwvkm 1/1 Running 0 19m
vmware-system-tmc inspection-extension-8596b56fbf-9lgb8 1/1 Running 0 19m
vmware-system-tmc intent-agent-989f4ff75-nnkk7 0/1 Error 0 19m
vmware-system-tmc package-deployment-78fb667985-xl9xg 1/1 Running 0 19m
vmware-system-tmc policy-insight-extension-manager-858fcd67b8-vs9c9 1/1 Running 6 (3m36s ago) 19m
vmware-system-tmc policy-sync-extension-5d598d669d-zj7bj 1/1 Running 0 19m
vmware-system-tmc sync-agent-5bbbcddd55-65fzt 1/1 Running 0 19m
vmware-system-tmc tmc-observer-85ddf94675-2q44h 1/1 Running 0 19m
ubuntu@opsmgr:~$
ubuntu@opsmgr:~$ kubectl get services -A
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default kubernetes ClusterIP 10.100.200.1 <none> 443/TCP 409d
kube-system kube-dns ClusterIP 10.100.200.2 <none> 53/UDP,53/TCP,9153/TCP 409d
kube-system metrics-server ClusterIP 10.100.200.239 <none> 443/TCP 409d
kube-system snapshot-validation-service ClusterIP 10.100.200.47 <none> 443/TCP 46m
nginx nginx LoadBalancer 10.100.200.254 192.168.16.112 80:31639/TCP 409d
openldap openldap-service LoadBalancer 10.100.200.80 192.168.16.114 389:31223/TCP,636:32280/TCP 356d
pks-system fluent-bit ClusterIP 10.100.200.250 <none> 24224/TCP 409d
pks-system validator ClusterIP 10.100.200.78 <none> 443/TCP 409d
tanzu-system packaging-api ClusterIP 10.100.200.216 <none> 443/TCP,8080/TCP 350d
vmware-system-csi vsphere-webhook-svc ClusterIP 10.100.200.191 <none> 443/TCP 46m
vmware-system-tmc cluster-auth-pinniped-api ClusterIP 10.100.200.142 <none> 443/TCP 350d
vmware-system-tmc cluster-auth-pinniped-impersonation-proxy-load-balancer LoadBalancer 10.100.200.143 192.168.16.116 443:31820/TCP 350d
vmware-system-tmc cluster-auth-pinniped-proxy ClusterIP 10.100.200.178 <none> 443/TCP 350d
vmware-system-tmc extension-manager-service ClusterIP 10.100.200.86 <none> 443/TCP 350d
vmware-system-tmc extension-updater ClusterIP 10.100.200.233 <none> 9988/TCP 350d
vmware-system-tmc gatekeeper-operator-service ClusterIP 10.100.200.132 <none> 443/TCP 350d
vmware-system-tmc inspection-extension ClusterIP 10.100.200.19 <none> 443/TCP 350d
vmware-system-tmc policy-insight-extension-service ClusterIP 10.100.200.44 <none> 443/TCP 350d
vmware-system-tmc policy-sync-extension ClusterIP 10.100.200.57 <none> 443/TCP 350d
ubuntu@opsmgr:~$
ubuntu@opsmgr:~$ curl http://192.168.16.112
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, nginx is successfully installed and working.
Further configuration is required for the web server, reverse proxy,
API gateway, load balancer, content cache, or other features.</p>
<p>For online documentation and support please refer to
<a href="https://nginx.org/">nginx.org</a>.<br/>
To engage with the community please visit
<a href="https://community.nginx.org/">community.nginx.org</a>.<br/>
For enterprise grade support, professional services, additional
security features and capabilities please refer to
<a href="https://f5.com/nginx">f5.com/nginx</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>
ubuntu@opsmgr:~$
Next, powered on all the remaining VM’s that were still off. These include the AVI VM’s, the TKGM Management and Workload clusters’ VM’s, and numbat (my jumpbox).

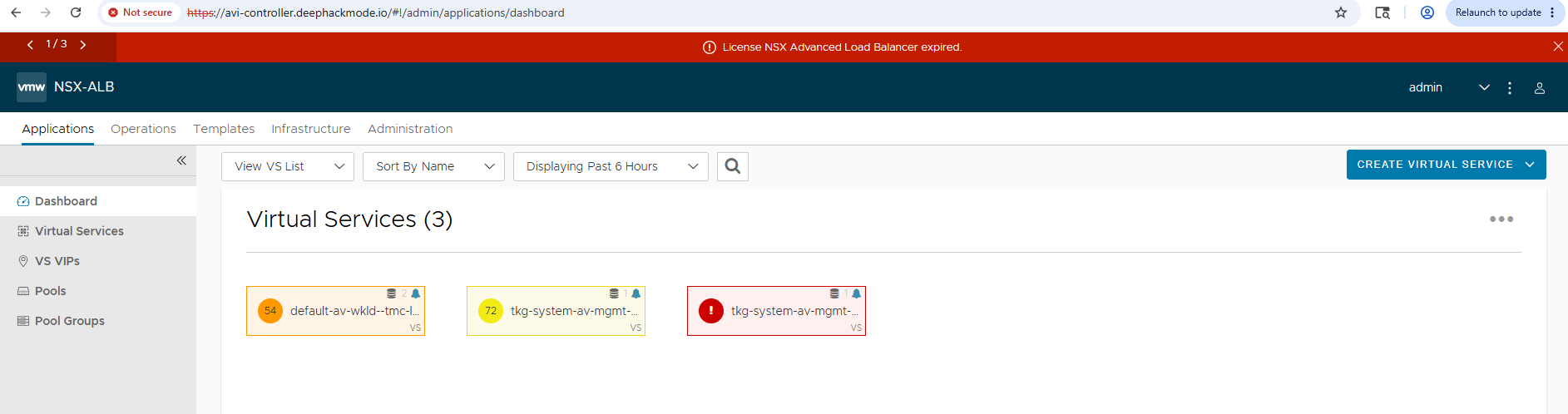

Logged in to the AVI UI with ‘admin’ and usual password. Added new license to AVI.
I then quickly check the TKGM clusters. And none of them was running. I didn’t pursue recovery. I will just delete their VMs later.
At that point, I was satisfied with the recovery!
My next plan for the homelab is to install and deploy the Tanzu Elastic Application Runtime (Small Footprint). To be able to do that, I need to free up resources as it’s severely limited in this homelab. I will uninstall everything except for Ops Manager.
