Creating a Management Cluster
It’s time to create a TKGM Management Cluster!
Download the TKGM Base Image🔗

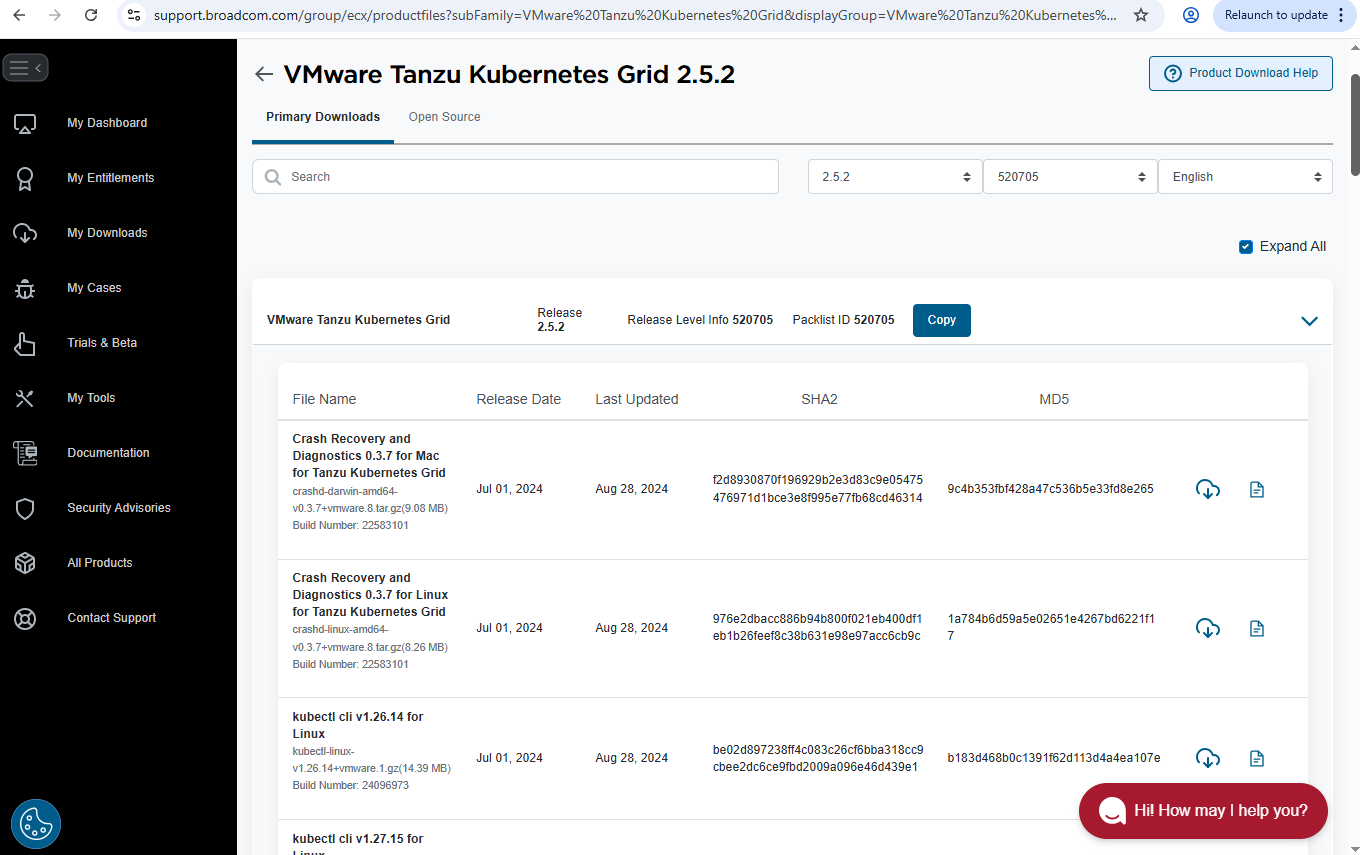

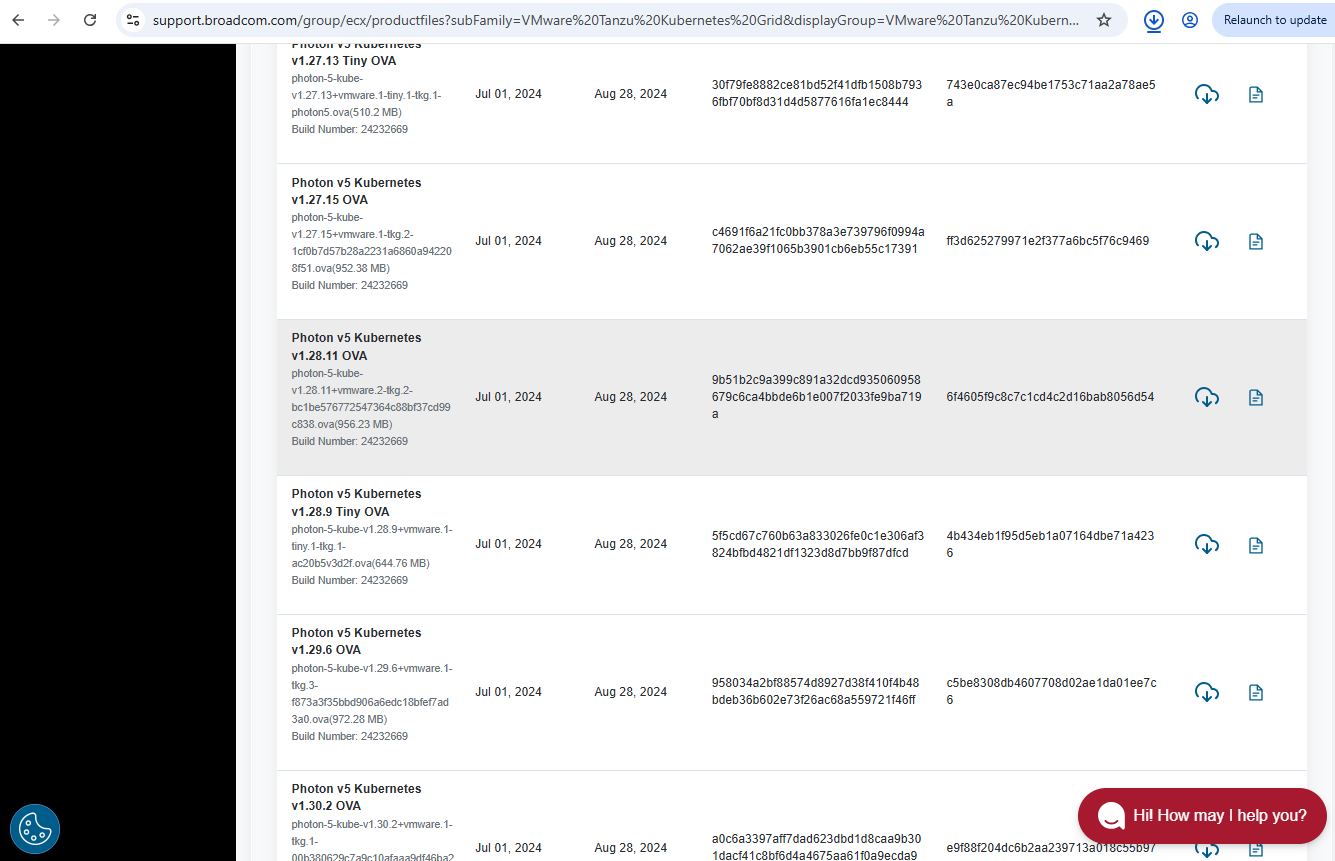

I downloaded the Photon v1.28.11 image from the Broadcom Support Portal.
Create a Resource Pool and Templates Folder in vCenter🔗
I created a Resource Pool named “TKGM”. I also created a VM/Templates Folder and named it “tkgm”. These are to get these objects organized in vCenter.
Upload the Base Image🔗
I used the govc cli to upload the image and make it as a VM template. I sourced the govcenv.sh file that I created in the previous post abount “Noble Numbat”. By doing this, I set up the required envars for govc to work with communicating to vCenter.
. govcenv.sh
I created a import.spec file based on the OVA file. Here’s the command:
govc import.spec photon-5-kube-v1.28.11+vmware.2-tkg.2-bc1be576772547364c88bf37cd99c838.ova | python3 -m json.tool > photon.json
I edited the JSON file, basically changing the Network info only.
$ cat photon.json
{
"DiskProvisioning": "flat",
"IPAllocationPolicy": "dhcpPolicy",
"IPProtocol": "IPv4",
"NetworkMapping": [
{
"Name": "nic0",
"Network": "VM Network"
}
],
"Annotation": "Cluster API vSphere image - VMware Photon OS 64-bit and Kubernetes v1.28.11+vmware.2 - https://github.com/kubernetes-sigs/cluster-api-provider-vsphere",
"MarkAsTemplate": false,
"PowerOn": false,
"InjectOvfEnv": false,
"WaitForIP": false,
"Name": null
}
I then uploaded the OVA:
govc import.ova -options photon.json -folder /Datacenter/vm/tkgm photon-5-kube-v1.28.11+vmware.2-tkg.2-bc1be576772547364c88bf37cd99c838.ova
I verified the OVA has been uploaded:
$ govc ls /Datacenter/vm/tkgm
/Datacenter/vm/tkgm/photon-5-kube-v1.28.11
I then marked it as a template:
govc vm.markastemplate /Datacenter/vm/tkgm/photon-5-kube-v1.28.11
Set up the tanzu cli🔗
I installed tanzu cli in the previous post (Noble Numbat). I ran the following commands to set up the cli and install the plugins.
tanzu init
tanzu plugin list
tanzu plugin sync
tanzu plugin group get vmware-tkg/default:v2.5.2
tanzu plugin install --group vmware-tkg/default:v2.5.2
tanzu plugin list
Get the vCenter thumbprint info🔗
I ran the following to get the vCenter thumbprint that will be used in the cluster config file.
$ echo | openssl s_client -connect vc-1.deephackmode.io:443 2>/dev/null | openssl x509 -noout -fingerprint -sha1
sha1 Fingerprint=2C:8D:09:73:32:4F:97:88:14:73:74:D0:21:0F:DE:A7:18:7B:8E:FF
Get the encoded string of the vCenter password🔗
This encoded string is also needed to be set in the cluster config file:
$ echo -n 'password' | base64
cGFzc3dvcmQ=
Add a 100GB disk to numbat🔗
I had to add a 100GB disk to my jumpbox because I will use an air-gapped installation method, which means that I need to transfer the container images from the public Broadcom registry to my private Harbor registry.
I shut down numbat. Then, in vCenter, I edited the VM settings and then a new Hard Disk device (100GB in size). I also increased the memory from 1 to 8GB. I then powered it back on!
Once it’s back up and running. I ran the following commands to partition, format and mount the disk.
ubuntu@numbat:~$ lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
fd0 2:0 1 4K 0 disk
sda 8:0 0 10G 0 disk
├─sda1 8:1 0 9G 0 part /
├─sda14 8:14 0 4M 0 part
├─sda15 8:15 0 106M 0 part /boot/efi
└─sda16 259:0 0 913M 0 part /boot
sdb 8:16 0 100G 0 disk
sr0 11:0 1 44K 0 rom
ubuntu@numbat:~$ sudo -i
root@numbat:~# parted
GNU Parted 3.6
Using /dev/sda
Welcome to GNU Parted! Type 'help' to view a list of commands.
(parted) select /dev/sdb
Using /dev/sdb
(parted) mklabel gpt
(parted) print
Model: VMware Virtual disk (scsi)
Disk /dev/sdb: 107GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags:
Number Start End Size File system Name Flags
(parted) mkpart primary ext4 0% 100%
(parted) print
Model: VMware Virtual disk (scsi)
Disk /dev/sdb: 107GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags:
Number Start End Size File system Name Flags
1 1049kB 107GB 107GB ext4 primary
(parted) quit
Information: You may need to update /etc/fstab.
root@numbat:~# lsblk -f
NAME FSTYPE FSVER LABEL UUID FSAVAIL FSUSE% MOUNTPOINTS
fd0
sda
├─sda1 ext4 1.0 cloudimg-rootfs b6729b3d-0cb7-4166-8709-bce594ecd93b 4.7G 46% /
├─sda14
├─sda15 vfat FAT32 UEFI DADD-8B1D 98.2M 6% /boot/efi
└─sda16 ext4 1.0 BOOT 5b84c2cf-4483-451c-8408-d76d6e18d65d 707.1M 13% /boot
sdb
└─sdb1
sr0 iso9660 OVF ENV 2025-05-11-23-26-47-0
root@numbat:~# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
fd0 2:0 1 4K 0 disk
sda 8:0 0 10G 0 disk
├─sda1 8:1 0 9G 0 part /
├─sda14 8:14 0 4M 0 part
├─sda15 8:15 0 106M 0 part /boot/efi
└─sda16 259:0 0 913M 0 part /boot
sdb 8:16 0 100G 0 disk
└─sdb1 8:17 0 100G 0 part
sr0 11:0 1 44K 0 rom
root@numbat:~# mkfs -t ext4 /dev/sdb1
mke2fs 1.47.0 (5-Feb-2023)
Creating filesystem with 26213888 4k blocks and 6553600 inodes
Filesystem UUID: fbd89617-bddc-4a40-a986-4af21c7649a0
Superblock backups stored on blocks:
32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
4096000, 7962624, 11239424, 20480000, 23887872
Allocating group tables: done
Writing inode tables: done
Creating journal (131072 blocks): done
Writing superblocks and filesystem accounting information: done
root@numbat:~# lsblk -f
NAME FSTYPE FSVER LABEL UUID FSAVAIL FSUSE% MOUNTPOINTS
fd0
sda
├─sda1 ext4 1.0 cloudimg-rootfs b6729b3d-0cb7-4166-8709-bce594ecd93b 4.7G 46% /
├─sda14
├─sda15 vfat FAT32 UEFI DADD-8B1D 98.2M 6% /boot/efi
└─sda16 ext4 1.0 BOOT 5b84c2cf-4483-451c-8408-d76d6e18d65d 707.1M 13% /boot
sdb
└─sdb1 ext4 1.0 fbd89617-bddc-4a40-a986-4af21c7649a0
sr0 iso9660 OVF ENV 2025-05-11-23-26-47-0
root@numbat:~# mount /dev/sdb1 /mnt
root@numbat:~# cd /mnt
root@numbat:/mnt# df -h .
Filesystem Size Used Avail Use% Mounted on
/dev/sdb1 98G 24K 93G 1% /mnt
root@numbat:/mnt# ls -l
total 16
drwx------ 2 root root 16384 May 11 23:29 lost+found
root@numbat:/mnt#
Set up the docker env🔗
The private Harbor Registry is the one that I installed in a recent post (Deploying Harbor Registry).
I had to install the Ops Manager CA certificate in numbat so that I can log in to the registry and be able to push images there.
root@numbat:/usr/local/share/ca-certificates# vi opsman-ca.crt
root@numbat:/usr/local/share/ca-certificates# update-ca-certificates
Updating certificates in /etc/ssl/certs...
rehash: warning: skipping ca-certificates.crt,it does not contain exactly one certificate or CRL
1 added, 0 removed; done.
Running hooks in /etc/ca-certificates/update.d...
done.
root@numbat:/usr/local/share/ca-certificates# systemctl restart docker
exit
logout
ubuntu@numbat:/mnt/ubuntu$ docker login harbor.deephackmode.io
Username: admin
Password:
WARNING! Your password will be stored unencrypted in /home/ubuntu/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store
Login Succeeded
ubuntu@numbat:/mnt/ubuntu$
Transfer images to the private registry🔗
I followed the TKGM doc on preparing for offline installation, but basically these are the 3 steps on how to transfer the images.
tanzu isolated-cluster list-bundle --source-repo projects.registry.vmware.com/tkg --tkg-version v2.5.2
tanzu isolated-cluster download-bundle --source-repo projects.registry.vmware.com/tkg --tkg-version v2.5.2
tanzu isolated-cluster upload-bundle --source-directory ./ --destination-repo harbor.deephackmode.io/tkg --ca-certificate /usr/local/share/ca-certificates/opsman-ca.crt
Added the certificate data🔗
Followed this tanzu cli doc on how to add the private registry CA cert to the tanzu config:
tanzu config cert add --host harbor.deephackmode.io --ca-certificate /usr/local/share/ca-certificates/opsman-ca.crt
Set up Avi Controller Custom Certificate🔗
I followed this Avi doc on how to set up the Custom Certificate
I downloaded the certificate PEM data and saved it into a file, and also got a base64-encoded string from it, because it is needed in the cluster config for creating the management cluster.
Create the Management Cluster configuration file🔗
$ cat av-mgmt.yaml
AVI_ENABLE: true
AVI_CA_DATA_B64: LS0XXXX....XXXXXXXX=
AVI_CLOUD_NAME: "vmware-cloud"
#AVI_CONTROLLER: "avi-controller.deephackmode.io"
AVI_CONTROLLER: "192.168.86.211"
AVI_CONTROL_PLANE_HA_PROVIDER: true
AVI_DATA_NETWORK: "VM Network"
AVI_DATA_NETWORK_CIDR: 192.168.86.0/24
AVI_USERNAME: "admin"
AVI_PASSWORD: 'xxx'
AVI_SERVICE_ENGINE_GROUP: "Default-Group"
CLUSTER_CIDR: 100.96.0.0/11
CLUSTER_NAME: av-mgmt
CLUSTER_PLAN: dev
ENABLE_TKGS_ON_VSPHERE7: "false"
DEPLOY_TKG_ON_VSPHERE7: "true"
ENABLE_CEIP_PARTICIPATION: "false"
ENABLE_MHC: "true"
IDENTITY_MANAGEMENT_TYPE: none
INFRASTRUCTURE_PROVIDER: vsphere
SERVICE_CIDR: 100.64.0.0/13
TKG_HTTP_PROXY_ENABLED: "false"
VSPHERE_CONTROL_PLANE_DISK_GIB: "40"
VSPHERE_CONTROL_PLANE_MEM_MIB: "8192"
VSPHERE_CONTROL_PLANE_NUM_CPUS: "2"
VSPHERE_DATACENTER: /Datacenter
VSPHERE_DATASTORE: /Datacenter/datastore/datastore1
VSPHERE_FOLDER: /Datacenter/vm/tkgm
VSPHERE_NETWORK: VM Network
VSPHERE_USERNAME: administrator@vsphere.local
VSPHERE_PASSWORD: <encoded:xxx>
VSPHERE_RESOURCE_POOL: TKGM
VSPHERE_SERVER: vc-1.deephackmode.io
VSPHERE_SSH_AUTHORIZED_KEY: ssh-rsa XXXXXXXX...XXXXXX== avillalon@vmware.com
VSPHERE_TLS_THUMBPRINT: XX:4F:97:88:14:73:74:D0:21:0F:DE:A7:18:7B:8E:FF
VSPHERE_WORKER_DISK_GIB: "40"
VSPHERE_WORKER_MEM_MIB: "8192"
VSPHERE_WORKER_NUM_CPUS: "2"
VSPHERE_TEMPLATE: /Datacenter/vm/tkgm/photon-5-kube-v1.28.11
MANAGEMENT_NODE_IPAM_IP_POOL_GATEWAY: "192.168.86.34"
MANAGEMENT_NODE_IPAM_IP_POOL_ADDRESSES: "192.168.86.150-192.168.86.155"
MANAGEMENT_NODE_IPAM_IP_POOL_SUBNET_PREFIX: "24"
CONTROL_PLANE_NODE_NAMESERVERS: "192.168.86.34"
WORKER_NODE_NAMESERVERS: "192.168.86.34"
OS_NAME: "photon"
OS_VERSION: "5"
OS_ARCH: "amd64"
TKG_CUSTOM_IMAGE_REPOSITORY: "harbor.deephackmode.io/tkg"
TKG_CUSTOM_IMAGE_REPOSITORY_CA_CERTIFICATE: "LS0XXXXXXXX...XXXX="
Create the TKGM Management Cluster🔗
I ran the following command to start the cluster creation.
tanzu management-cluster create -f mgmt.yaml -v 6
After a few minutes, it has completed successfully. Basic checks of the management cluster, pods and packages were all fine.
ubuntu@numbat:~$ tanzu mc get --show-details
NAME NAMESPACE STATUS CONTROLPLANE WORKERS KUBERNETES ROLES PLAN TKR
av-mgmt tkg-system running 1/1 1/1 v1.28.11+vmware.2 management dev v1.28.11---vmware.2-tkg.2
Details:
NAME READY SEVERITY REASON SINCE MESSAGE
/av-mgmt True 11m
├─ClusterInfrastructure - VSphereCluster/av-mgmt-bxfh2 True 11m
├─ControlPlane - KubeadmControlPlane/av-mgmt-controlplane-8chpd True 8m
│ └─Machine/av-mgmt-controlplane-8chpd-khb48 True 8m
│ ├─BootstrapConfig - KubeadmConfig/av-mgmt-controlplane-8chpd-khb48 True 8m
│ └─MachineInfrastructure - VSphereMachine/av-mgmt-controlplane-8chpd-khb48 True 8m
└─Workers
└─MachineDeployment/av-mgmt-md-0-pfwtg True 7m
└─Machine/av-mgmt-md-0-pfwtg-lj65v-fx8qm True 7m
├─BootstrapConfig - KubeadmConfig/av-mgmt-md-0-pfwtg-lj65v-fx8qm True 7m
└─MachineInfrastructure - VSphereMachine/av-mgmt-md-0-pfwtg-lj65v-fx8qm True 7m
Providers:
NAMESPACE NAME TYPE PROVIDERNAME VERSION
caip-in-cluster-system ipam-in-cluster IPAMProvider in-cluster v0.1.0
capi-kubeadm-bootstrap-system bootstrap-kubeadm BootstrapProvider kubeadm v1.7.3
capi-kubeadm-control-plane-system control-plane-kubeadm ControlPlaneProvider kubeadm v1.7.3
capi-system cluster-api CoreProvider cluster-api v1.7.3
capv-system infrastructure-vsphere InfrastructureProvider vsphere v1.10.1
ubuntu@numbat:~$
ubuntu@numbat:~$ kubectl cluster-info
Kubernetes control plane is running at https://192.168.86.205:6443
CoreDNS is running at https://192.168.86.205:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.
ubuntu@numbat:~$
ubuntu@numbat:~$ kubectl get no
NAME STATUS ROLES AGE VERSION
av-mgmt-controlplane-8chpd-khb48 Ready control-plane 20m v1.28.11+vmware.2
av-mgmt-md-0-pfwtg-lj65v-fx8qm Ready <none> 20m v1.28.11+vmware.2
ubuntu@numbat:~$ kubectl get po -A
NAMESPACE NAME READY STATUS RESTARTS AGE
avi-system ako-0 1/1 Running 0 20m
caip-in-cluster-system caip-in-cluster-controller-manager-5d9465c5c8-z5b76 1/1 Running 0 20m
capi-kubeadm-bootstrap-system capi-kubeadm-bootstrap-controller-manager-596dc5b8f7-jdg8k 1/1 Running 0 20m
capi-kubeadm-control-plane-system capi-kubeadm-control-plane-controller-manager-5f6954db45-9f5t6 1/1 Running 0 20m
capi-system capi-controller-manager-8cc4cfdfb-2l9h9 1/1 Running 0 20m
capv-system capv-controller-manager-7b757d847-tb7pk 1/1 Running 0 20m
cert-manager cert-manager-b667b6c79-c2rgh 1/1 Running 0 20m
cert-manager cert-manager-cainjector-68fd55cd74-8nr9p 1/1 Running 0 20m
cert-manager cert-manager-webhook-7ff4cfd876-tplkk 1/1 Running 0 20m
kube-system antrea-agent-6qhdx 2/2 Running 0 20m
kube-system antrea-agent-j5smh 2/2 Running 0 20m
kube-system antrea-controller-5c49559ccb-5sfq7 1/1 Running 0 20m
kube-system coredns-8444fc749f-5hrfl 1/1 Running 0 20m
kube-system coredns-8444fc749f-8tgwj 1/1 Running 0 20m
kube-system etcd-av-mgmt-controlplane-8chpd-khb48 1/1 Running 0 20m
kube-system kube-apiserver-av-mgmt-controlplane-8chpd-khb48 1/1 Running 0 20m
kube-system kube-controller-manager-av-mgmt-controlplane-8chpd-khb48 1/1 Running 0 20m
kube-system kube-proxy-l48qg 1/1 Running 0 20m
kube-system kube-proxy-qlnfw 1/1 Running 0 20m
kube-system kube-scheduler-av-mgmt-controlplane-8chpd-khb48 1/1 Running 0 20m
kube-system metrics-server-8cc9c7d6d-dhd9c 1/1 Running 0 20m
kube-system vsphere-cloud-controller-manager-5sw2l 1/1 Running 0 20m
secretgen-controller secretgen-controller-bbc965bd6-hgpsq 1/1 Running 0 20m
tanzu-auth tanzu-auth-controller-manager-66b777f685-pqlqb 1/1 Running 0 20m
tkg-system-networking ako-operator-controller-manager-5c4ffb96c6-xt7bd 1/1 Running 0 20m
tkg-system kapp-controller-676ddf59fb-kcnwv 2/2 Running 0 20m
tkg-system object-propagation-controller-manager-5bfdbf8f8c-djfkd 1/1 Running 0 20m
tkg-system tanzu-addons-controller-manager-67d444cf8f-fvzmt 1/1 Running 0 20m
tkg-system tanzu-capabilities-controller-manager-5558bb644f-24xgc 1/1 Running 0 20m
tkg-system tanzu-featuregates-controller-manager-86b9fd7c99-cblzm 1/1 Running 0 20m
tkg-system tkg-runtime-extension-745885cddf-m9pkn 1/1 Running 0 20m
tkg-system tkr-conversion-webhook-manager-6bf58b8ff6-wwh9l 1/1 Running 0 20m
tkg-system tkr-resolver-cluster-webhook-manager-665db4d6b5-47vbw 1/1 Running 0 20m
tkg-system tkr-source-controller-manager-5696cdfcb5-k2fqx 1/1 Running 0 20m
tkg-system tkr-status-controller-manager-5676d6b7cd-np2z4 1/1 Running 0 20m
tkg-system tkr-vsphere-resolver-webhook-manager-6988b8f496-m299f 1/1 Running 0 20m
vmware-system-antrea register-placeholder-5fhtd 0/1 Completed 0 20m
vmware-system-csi vsphere-csi-controller-76df4bc4c6-tcggv 7/7 Running 0 20m
vmware-system-csi vsphere-csi-node-h4pzs 3/3 Running 0 20m
vmware-system-csi vsphere-csi-node-zfnr6 3/3 Running 0 20m
ubuntu@numbat:~$
ubuntu@numbat:~$ tanzu package installed list -A
NAMESPACE NAME PACKAGE-NAME PACKAGE-VERSION STATUS
tkg-system ako-operator ako-operator-v2.tanzu.vmware.com 0.32.3+vmware.1-tkg.1 Reconcile succeeded
tkg-system av-mgmt-antrea antrea.tanzu.vmware.com 1.13.3+vmware.4-tkg.1 Reconcile succeeded
tkg-system av-mgmt-capabilities capabilities.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system av-mgmt-gateway-api gateway-api.tanzu.vmware.com 1.0.0+vmware.1-tkg.2 Reconcile succeeded
tkg-system av-mgmt-load-balancer-and-ingress-service load-balancer-and-ingress-service.tanzu.vmware.com 1.11.2+vmware.2-tkg.2 Reconcile succeeded
tkg-system av-mgmt-metrics-server metrics-server.tanzu.vmware.com 0.6.2+vmware.8-tkg.1 Reconcile succeeded
tkg-system av-mgmt-pinniped pinniped.tanzu.vmware.com 0.25.0+vmware.3-tkg.1 Reconcile succeeded
tkg-system av-mgmt-secretgen-controller secretgen-controller.tanzu.vmware.com 0.15.0+vmware.2-tkg.1 Reconcile succeeded
tkg-system av-mgmt-tkg-storageclass tkg-storageclass.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system av-mgmt-vsphere-cpi vsphere-cpi.tanzu.vmware.com 1.28.0+vmware.3-tkg.2 Reconcile succeeded
tkg-system av-mgmt-vsphere-csi vsphere-csi.tanzu.vmware.com 3.3.0+vmware.1-tkg.1 Reconcile succeeded
tkg-system tanzu-addons-manager addons-manager.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system tanzu-auth tanzu-auth.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system tanzu-cliplugins cliplugins.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system tanzu-core-management-plugins core-management-plugins.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system tanzu-featuregates featuregates.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system tanzu-framework framework.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system tkg-clusterclass tkg-clusterclass.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system tkg-pkg tkg.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system tkr-service tkr-service.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system tkr-source-controller tkr-source-controller.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system tkr-vsphere-resolver tkr-vsphere-resolver.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
ubuntu@numbat:~$
