Creating a TKGM Workload Cluster
In this post, I share the steps that I executed to create a Workload Cluster using the Ubuntu image with k8s version 1.30.2. Once a Management Cluster is up and running, it’s easier to be able to create a Workload Cluster. I said that because, for the most part, you just need to copy the cluster config file that worked for the Management Cluster and change a few settings that are unique to the cluster. I also created a Cluster IP Pool to be used by the Workload Cluster, so that I don’t have to rely on DHCP. This installation also uses the steps for deployment in an airgapped environment, and so it used the same container images that were transferred to the private registry.
Download the TKGM Ubuntu OVA
I downloaded the Ubuntu 2204 Kubernetes v1.30.2 OVA image, for TKGM v2.5.2, from the Broadcom Support Portal.
Upload the image to vCenter
I uploaded the image to vCenter using the same steps that I ran during Management Cluster creation.
Create a Cluster IP Pool
I wanted to create an IP pool for the cluster nodes so that I can control what IP addresses are assigned to them.
ubuntu@numbat:~$ cat workload-GlobalInClusterIPPool.yaml
apiVersion: ipam.cluster.x-k8s.io/v1alpha2
kind: GlobalInClusterIPPool
metadata:
name: workload-globalincluster-ippool
spec:
gateway: 192.168.86.34
addresses:
- 192.168.86.155-192.168.86.167
prefix: 24
ubuntu@numbat:~$ kubectl apply -f workload-GlobalInClusterIPPool.yaml
globalinclusterippool.ipam.cluster.x-k8s.io/workload-globalincluster-ippool created
ubuntu@numbat:~$
Create the Workload Cluster configuration file
I copied the Management Cluster config file and changed a few settings such as CLUSTER_NAME and VSPHERE_TEMPLATE. I also removed all of the settings with names that start with “MANAGEMENT_NODE_IPAM_IP_POOL”, and replaced them with the NODE_IPAM_IP_POOL_* settings.
$ cat av-wkld.yaml
AVI_ENABLE: true
AVI_CA_DATA_B64: LS0XXXX....XXXXXXXX=
AVI_CLOUD_NAME: "vmware-cloud"
#AVI_CONTROLLER: "avi-controller.deephackmode.io"
AVI_CONTROLLER: "192.168.86.211"
AVI_CONTROL_PLANE_HA_PROVIDER: true
AVI_DATA_NETWORK: "VM Network"
AVI_DATA_NETWORK_CIDR: 192.168.86.0/24
AVI_USERNAME: "admin"
AVI_PASSWORD: 'xxx'
AVI_SERVICE_ENGINE_GROUP: "Default-Group"
CLUSTER_CIDR: 100.96.0.0/11
CLUSTER_NAME: av-wkld
CLUSTER_PLAN: dev
ENABLE_TKGS_ON_VSPHERE7: "false"
DEPLOY_TKG_ON_VSPHERE7: "true"
ENABLE_CEIP_PARTICIPATION: "false"
ENABLE_MHC: "true"
IDENTITY_MANAGEMENT_TYPE: none
INFRASTRUCTURE_PROVIDER: vsphere
SERVICE_CIDR: 100.64.0.0/13
TKG_HTTP_PROXY_ENABLED: "false"
VSPHERE_CONTROL_PLANE_DISK_GIB: "40"
VSPHERE_CONTROL_PLANE_MEM_MIB: "8192"
VSPHERE_CONTROL_PLANE_NUM_CPUS: "2"
VSPHERE_DATACENTER: /Datacenter
VSPHERE_DATASTORE: /Datacenter/datastore/datastore1
VSPHERE_FOLDER: /Datacenter/vm/tkgm
VSPHERE_NETWORK: VM Network
VSPHERE_USERNAME: administrator@vsphere.local
VSPHERE_PASSWORD: <encoded:xxx>
VSPHERE_RESOURCE_POOL: TKGM
VSPHERE_SERVER: vc-1.deephackmode.io
VSPHERE_SSH_AUTHORIZED_KEY: ssh-rsa XXXXXXXX...XXXXXX== avillalon@vmware.com
VSPHERE_TLS_THUMBPRINT: XX:4F:97:88:14:73:74:D0:21:0F:DE:A7:18:7B:8E:FF
VSPHERE_WORKER_DISK_GIB: "40"
VSPHERE_WORKER_MEM_MIB: "8192"
VSPHERE_WORKER_NUM_CPUS: "2"
VSPHERE_TEMPLATE: /Datacenter/vm/tkgm/ubuntu-2204-efi-kube-v1.30.2
NODE_IPAM_IP_POOL_KIND: "GlobalInClusterIPPool"
NODE_IPAM_IP_POOL_NAME: "workload-globalincluster-ippool"
CONTROL_PLANE_NODE_NAMESERVERS: "192.168.86.34"
WORKER_NODE_NAMESERVERS: "192.168.86.34"
WORKER_MACHINE_COUNT: "2"
TKG_CUSTOM_IMAGE_REPOSITORY: "harbor.deephackmode.io/tkg"
TKG_CUSTOM_IMAGE_REPOSITORY_CA_CERTIFICATE: "LS0XXXXXXXX...XXXX="
Create the TKGM Workload Cluster
I needed to get the TKR (Tanzu Kubernetes Release) for the version that I uploaded in the initial step. That was v1.30.2.
ubuntu@numbat:~$ tanzu kubernetes-release get
NAME VERSION COMPATIBLE ACTIVE UPDATES AVAILABLE
v1.26.14---vmware.1-tiny.1-tkg.3 v1.26.14+vmware.1-tiny.1-tkg.3 True True
v1.26.14---vmware.1-tkg.4 v1.26.14+vmware.1-tkg.4 True True
v1.27.13---vmware.1-tiny.1-tkg.2 v1.27.13+vmware.1-tiny.1-tkg.2 True True
v1.27.15---vmware.1-tkg.2 v1.27.15+vmware.1-tkg.2 True True
v1.28.11---vmware.2-tkg.2 v1.28.11+vmware.2-tkg.2 True True
v1.28.9---vmware.1-tiny.1-tkg.2 v1.28.9+vmware.1-tiny.1-tkg.2 True True
v1.29.6---vmware.1-tkg.3 v1.29.6+vmware.1-tkg.3 True True
v1.30.2---vmware.1-tkg.1 v1.30.2+vmware.1-tkg.1 True True
I ran the following command to start the cluster creation. I specified the tkr I got from the above output. If I don’t specify the TKR, it will go looking for an Ubuntu image version 1.28.11 by default and it will fail in this case because I didn’t upload that particular image.
tanzu cluster create -f av-wkld.yaml -v 6 --tkr v1.30.2---vmware.1-tkg.1
It completed quickly but only because it only generated another cluster config file. See the output below.
...
Legacy configuration file detected. The inputs from said file have been converted into the new Cluster configuration as '/home/ubuntu/.config/tanzu/tkg/clusterconfigs/av-wkld.yaml'
To create a cluster with it, please use the following command together with all customized flags set in the last step. e.g. --tkr, -v
tanzu cluster create --file /home/ubuntu/.config/tanzu/tkg/clusterconfigs/av-wkld.yaml
I then ran the following command to start the actual cluster creation:
tanzu cluster create --file /home/ubuntu/.config/tanzu/tkg/clusterconfigs/av-wkld.yaml -v 6
After a few minutes, it has completed successfully.
Workload cluster 'av-wkld' created
Basic checks of the workload cluster, pods and packages were all fine.
ubuntu@numbat:~$ tanzu cluster list --include-management-cluster -A
NAME NAMESPACE STATUS CONTROLPLANE WORKERS KUBERNETES ROLES PLAN TKR
av-wkld default running 1/1 2/2 v1.30.2+vmware.1 <none> dev v1.30.2---vmware.1-tkg.1
av-mgmt tkg-system running 1/1 1/1 v1.28.11+vmware.2 management dev v1.28.11---vmware.2-tkg.2
ubuntu@numbat:~$ tanzu cluster get av-wkld --show-details
NAME NAMESPACE STATUS CONTROLPLANE WORKERS KUBERNETES ROLES TKR
av-wkld default running 1/1 2/2 v1.30.2+vmware.1 <none> v1.30.2---vmware.1-tkg.1
Details:
NAME READY SEVERITY REASON SINCE MESSAGE
/av-wkld True 8m25s
├─ClusterInfrastructure - VSphereCluster/av-wkld-7k82l True 12m
├─ControlPlane - KubeadmControlPlane/av-wkld-controlplane-7xjv9 True 8m25s
│ └─Machine/av-wkld-controlplane-7xjv9-l7bh8 True 8m46s
│ ├─BootstrapConfig - KubeadmConfig/av-wkld-controlplane-7xjv9-l7bh8 True 12m
│ └─MachineInfrastructure - VSphereMachine/av-wkld-controlplane-7xjv9-l7bh8 True 8m46s
└─Workers
└─MachineDeployment/av-wkld-md-0-hctds True 2m9s
├─Machine/av-wkld-md-0-hctds-vn6gp-7j9g7 True 2m12s
│ ├─BootstrapConfig - KubeadmConfig/av-wkld-md-0-hctds-vn6gp-7j9g7 True 7m23s
│ └─MachineInfrastructure - VSphereMachine/av-wkld-md-0-hctds-vn6gp-7j9g7 True 2m12s
└─Machine/av-wkld-md-0-hctds-vn6gp-r7gwj True 2m22s
├─BootstrapConfig - KubeadmConfig/av-wkld-md-0-hctds-vn6gp-r7gwj True 7m23s
└─MachineInfrastructure - VSphereMachine/av-wkld-md-0-hctds-vn6gp-r7gwj True 2m22s
ubuntu@numbat:~$
ubuntu@numbat:~$ tanzu cluster kubeconfig get av-wkld --admin
Credentials of cluster 'av-wkld' have been saved
You can now access the cluster by running 'kubectl config use-context av-wkld-admin@av-wkld'
ubuntu@numbat:~$ kubectl config use-context av-wkld-admin@av-wkld
Switched to context "av-wkld-admin@av-wkld".
ubuntu@numbat:~$ kubectl cluster-info
Kubernetes control plane is running at https://192.168.86.207:6443
CoreDNS is running at https://192.168.86.207:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.
ubuntu@numbat:~$
ubuntu@numbat:~$ kubectl get no -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
av-wkld-controlplane-7xjv9-l7bh8 Ready control-plane 11m v1.30.2+vmware.1 192.168.86.155 192.168.86.155 Ubuntu 22.04.4 LTS 5.15.0-116-generic containerd://1.6.33+vmware.2
av-wkld-md-0-hctds-vn6gp-7j9g7 Ready <none> 5m10s v1.30.2+vmware.1 192.168.86.156 192.168.86.156 Ubuntu 22.04.4 LTS 5.15.0-116-generic containerd://1.6.33+vmware.2
av-wkld-md-0-hctds-vn6gp-r7gwj Ready <none> 5m12s v1.30.2+vmware.1 192.168.86.157 192.168.86.157 Ubuntu 22.04.4 LTS 5.15.0-116-generic containerd://1.6.33+vmware.2
ubuntu@numbat:~$
ubuntu@numbat:~$ kubectl get po -A
NAMESPACE NAME READY STATUS RESTARTS AGE
avi-system ako-0 1/1 Running 0 10m
kube-system antrea-agent-j6bmj 2/2 Running 0 10m
kube-system antrea-agent-tzrfx 2/2 Running 0 5m44s
kube-system antrea-agent-vsrzz 2/2 Running 0 5m42s
kube-system antrea-controller-564d5bf96-7cng7 1/1 Running 0 10m
kube-system coredns-6b58858c85-cs7gr 1/1 Running 0 11m
kube-system coredns-6b58858c85-dknfp 1/1 Running 0 11m
kube-system etcd-av-wkld-controlplane-7xjv9-l7bh8 1/1 Running 0 11m
kube-system kube-apiserver-av-wkld-controlplane-7xjv9-l7bh8 1/1 Running 0 11m
kube-system kube-controller-manager-av-wkld-controlplane-7xjv9-l7bh8 1/1 Running 0 11m
kube-system kube-proxy-7phqn 1/1 Running 0 5m42s
kube-system kube-proxy-nz98b 1/1 Running 0 5m44s
kube-system kube-proxy-vxk4w 1/1 Running 0 11m
kube-system kube-scheduler-av-wkld-controlplane-7xjv9-l7bh8 1/1 Running 0 11m
kube-system metrics-server-54566c779f-nhpcx 1/1 Running 0 10m
kube-system vsphere-cloud-controller-manager-57ttd 1/1 Running 0 11m
secretgen-controller secretgen-controller-54ff485688-lxnhq 1/1 Running 0 10m
tkg-system kapp-controller-645fc89db6-gl2lt 2/2 Running 0 11m
tkg-system tanzu-capabilities-controller-manager-85d7d9bcd-flmk5 1/1 Running 0 10m
vmware-system-antrea register-placeholder-7sxg7 0/1 Completed 0 10m
vmware-system-csi vsphere-csi-controller-5cdf9477cc-dh7qd 7/7 Running 1 (9m49s ago) 11m
vmware-system-csi vsphere-csi-node-t9r2k 3/3 Running 4 (9m41s ago) 11m
vmware-system-csi vsphere-csi-node-w28dn 3/3 Running 0 5m44s
vmware-system-csi vsphere-csi-node-x4qgd 3/3 Running 2 (5m1s ago) 5m42s
ubuntu@numbat:~$
ubuntu@numbat:~$ tanzu package installed list -A
NAMESPACE NAME PACKAGE-NAME PACKAGE-VERSION STATUS
tkg-system av-wkld-antrea antrea.tanzu.vmware.com 1.13.3+vmware.4-tkg.1 Reconcile succeeded
tkg-system av-wkld-capabilities capabilities.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system av-wkld-gateway-api gateway-api.tanzu.vmware.com 1.0.0+vmware.1-tkg.2 Reconcile succeeded
tkg-system av-wkld-load-balancer-and-ingress-service load-balancer-and-ingress-service.tanzu.vmware.com 1.12.2+vmware.1-tkg.1 Reconcile succeeded
tkg-system av-wkld-metrics-server metrics-server.tanzu.vmware.com 0.6.2+vmware.8-tkg.1 Reconcile succeeded
tkg-system av-wkld-pinniped pinniped.tanzu.vmware.com 0.25.0+vmware.3-tkg.1 Reconcile succeeded
tkg-system av-wkld-secretgen-controller secretgen-controller.tanzu.vmware.com 0.15.0+vmware.2-tkg.1 Reconcile succeeded
tkg-system av-wkld-tkg-storageclass tkg-storageclass.tanzu.vmware.com 0.32.3+vmware.1 Reconcile succeeded
tkg-system av-wkld-vsphere-cpi vsphere-cpi.tanzu.vmware.com 1.28.0+vmware.3-tkg.2 Reconcile succeeded
tkg-system av-wkld-vsphere-csi vsphere-csi.tanzu.vmware.com 3.3.0+vmware.1-tkg.1 Reconcile succeeded
ubuntu@numbat:~$
Clean up and checks in Avi
In Avi, I deleted the “dummy” Virtual Service, which was created as a test during the deployment of the Avi Controller.

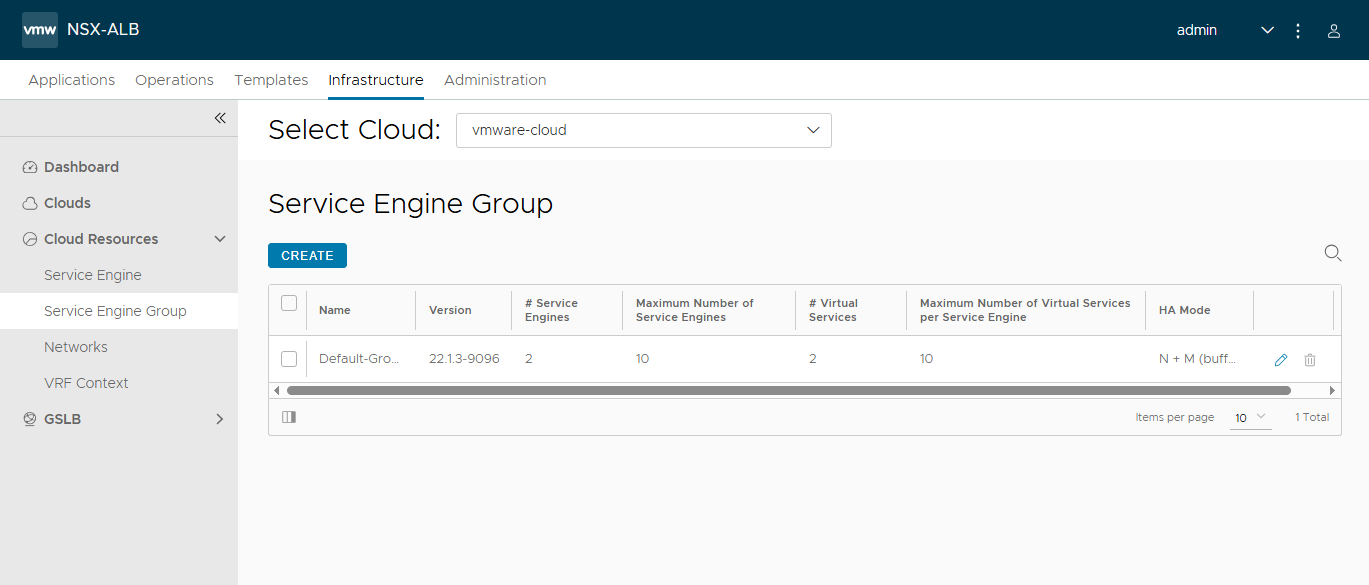

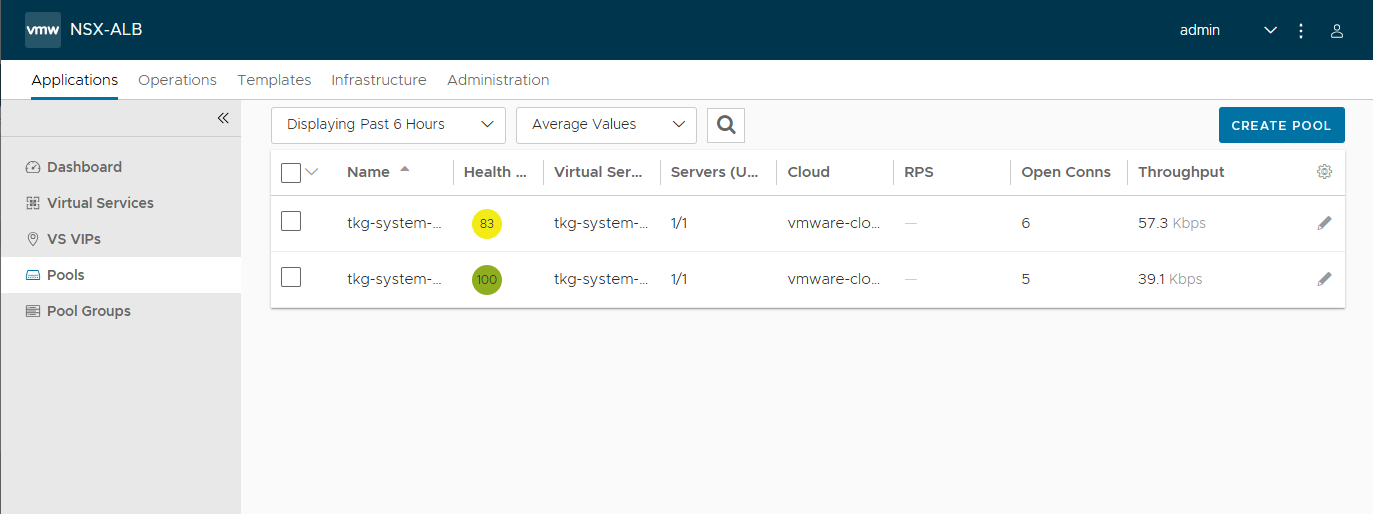

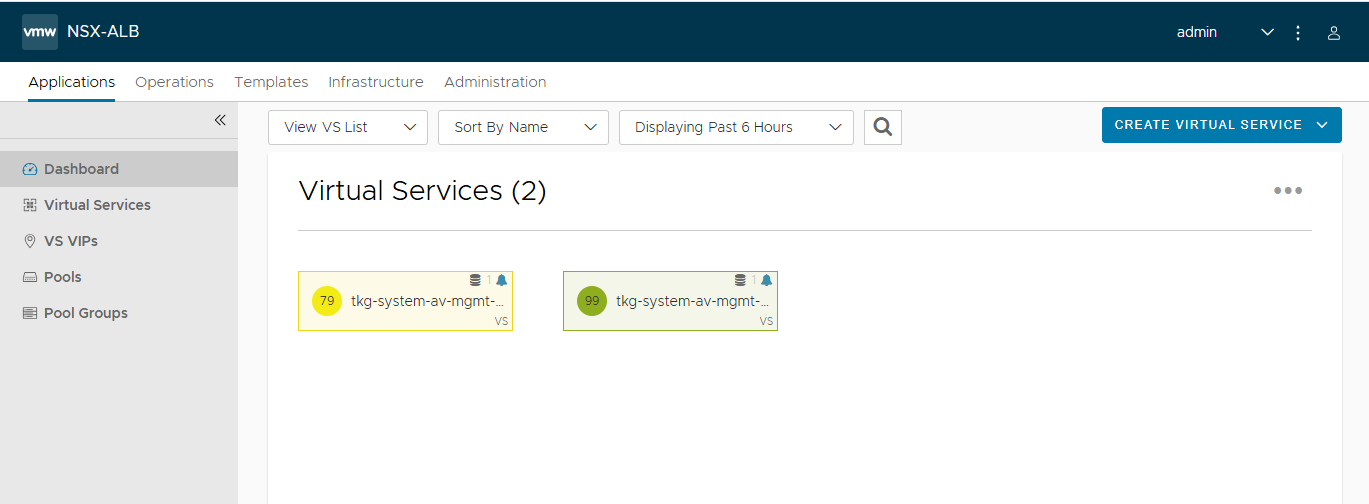

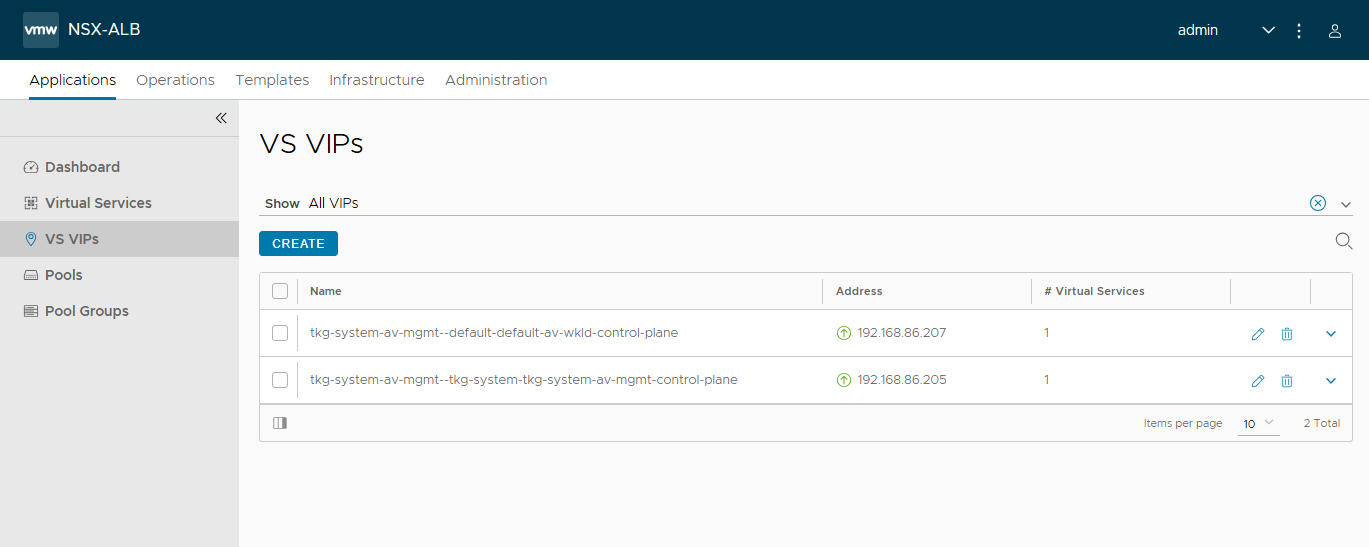

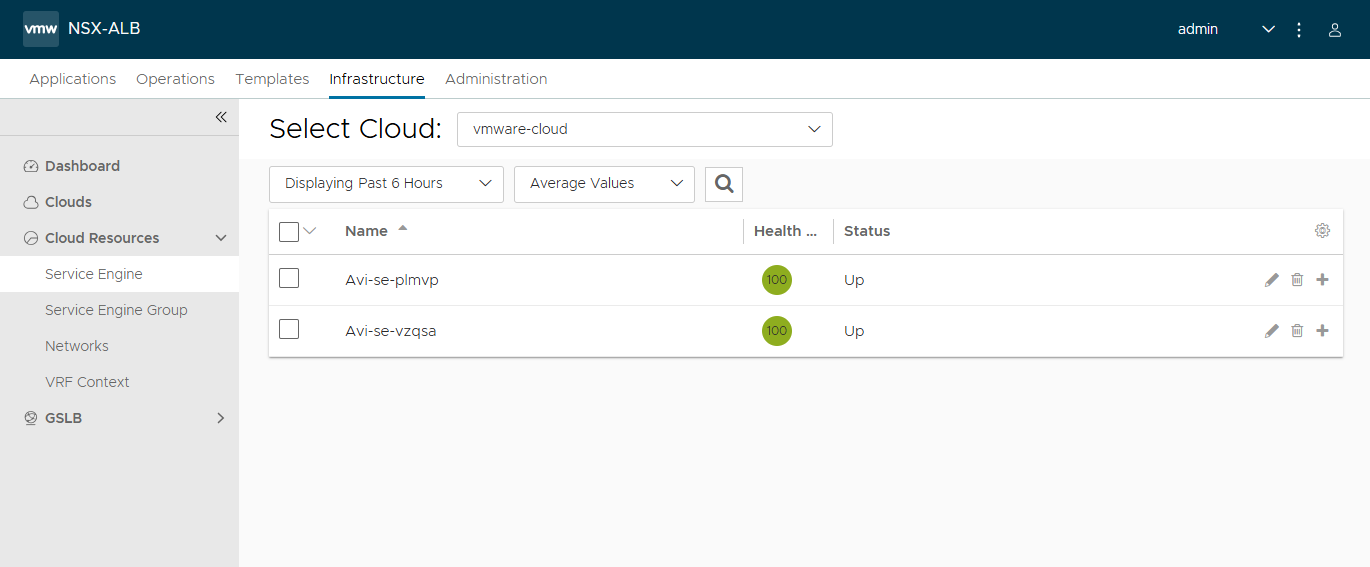

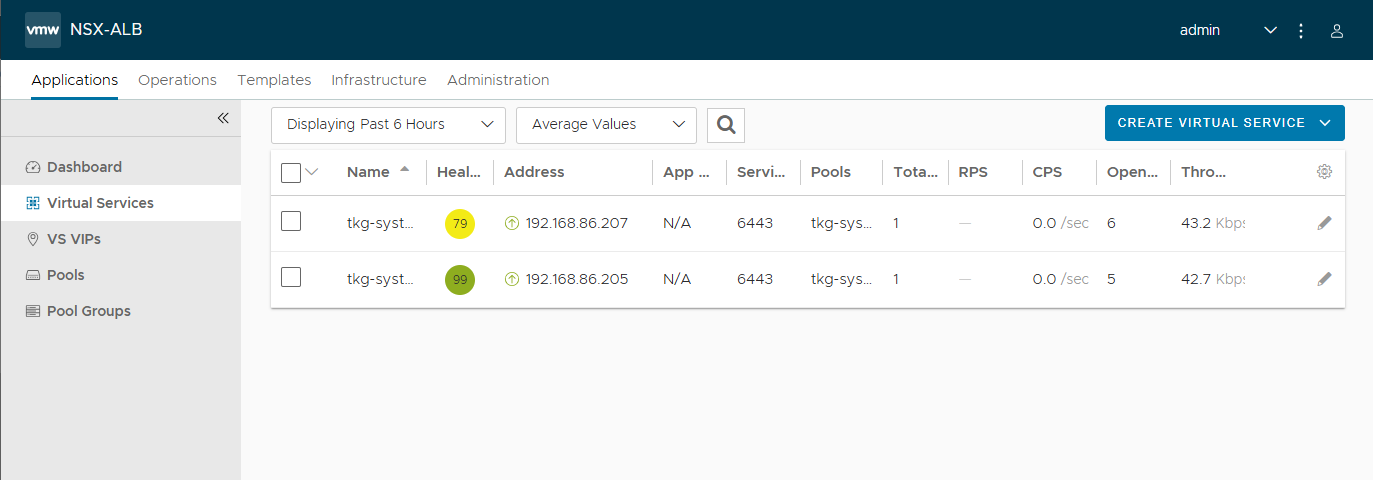

I looked at the Applications and Infrastrucutre pages in the Avi Controller UI as well, and they appear to be fine.
Also, the fact that the k8s API server on both the Management and Workload clusters are up and running, as evidenced by the kubectl outputs, means that the Avi Controller, Service Engines, Virtual Servers, and Load balancers are all running healthy.
In the next post, I’m planning to scale out the nodes in this cluster and install the Tanzu Mission Control Self-Managed (TMC-SM).
